Professional-Grade Oxygen Therapy. Built for Active Life.
The Portable Oxygen Concentrator Juniper - 4 Setting is a compact, lightweight portable oxygen concentrator designed to provide prescribed supplemental oxygen therapy while supporting an active lifestyle. Using advanced molecular sieve technology, the unit draws in ambient air, removes nitrogen through zeolite filtration, and delivers concentrated oxygen without the need for traditional oxygen tanks. Engineered for dependable daily performance, the Juniper combines quiet operation, rechargeable battery power, multiple charging options, and a user-friendly interface to provide reliable oxygen therapy at home, during travel, or on the go.
Designed for individuals with chronic respiratory conditions requiring portable supplemental oxygen, the Juniper - 4 Setting offers four adjustable pulse dose settings, allowing healthcare providers to tailor oxygen delivery based on prescribed therapy needs. Serviceable components, and professional-grade construction make it a practical solution for patients and durable medical equipment providers alike.
Features:
- Portable & Lightweight Design — The compact design allows the concentrator to be comfortably carried throughout the day using the included carrying bag or backpack. Weighing only 5.29 lbs, it provides reliable oxygen therapy without significantly limiting mobility or travel.
- Four Adjustable Pulse Dose Settings — Designed to deliver supplemental oxygen during inhalation only, the pulse dose system improves battery efficiency while allowing users to select from four prescribed oxygen settings based on clinical requirements.
- Rechargeable Battery & Multiple Power Sources — An integrated rechargeable lithium-ion battery supports portable use, while AC wall power and DC vehicle charging provide flexible operation at home or while traveling. Optional fast chargers are available separately for faster battery charging.

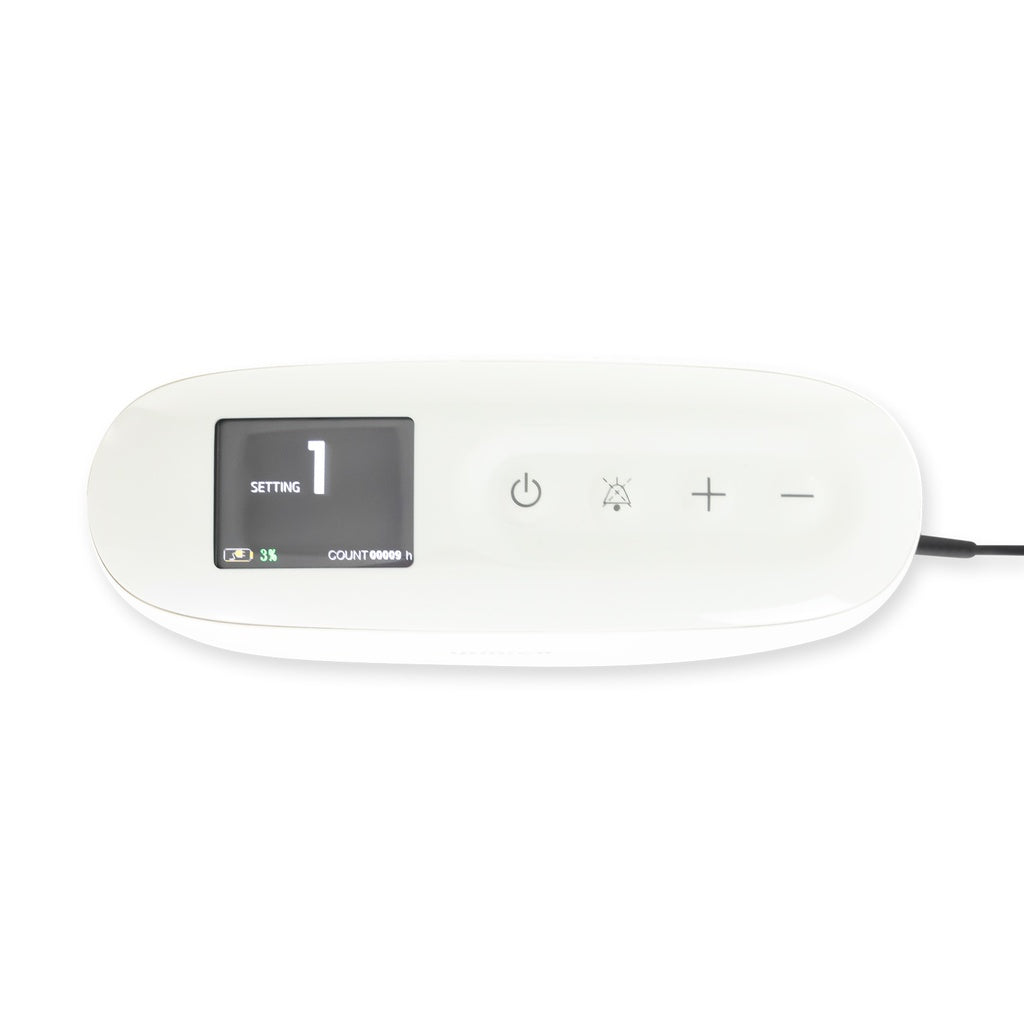

- Easy-to-Use Controls & Display — The LED/LCD display provides clear operational information while intuitive controls allow users to adjust prescribed oxygen settings quickly and easily.
- Professional-Grade Components — Constructed using durable medical-grade materials including ABS/polycarbonate housing, aluminum, steel, zeolite molecular sieve beds, silicone components, and precision electronic circuitry for dependable performance.
Specifications:
Pulse Flow Settings:
- 1 – 4.
Pulse volume per minute:
- 750 mL/min (0.75 L/min).
Oxygen:
- Oxygen Delivery: Pulse Dose.
- Oxygen Generation: Molecular sieve (zeolite) technology.
Power:
- AC Power Adapter: AC 100–240V, 50/60Hz.
- Consumption: 110VA.
- DC Power Adapter: DC 12V–16V.
Battery:
- Rechargeable Lithium-ion.
- DC 14.4V.
-
Flow Setting
Duration Time at 15 BPM
1
5 hours
2
3 hours
3
2 hours 15 minutes
4
1 hour 45 minutes
Outlet Pressure:
- <150 kPa.
Noise Level:
- Quiet operation.
What’s Included:
- Portable Oxygen Concentrator Juniper - 4 Setting.
- Rechargeable 8-cell Battery Pack.
- AC Power Supply / Charger.
- DC Vehicle Power Adapter.
- Starter Nasal Cannula.

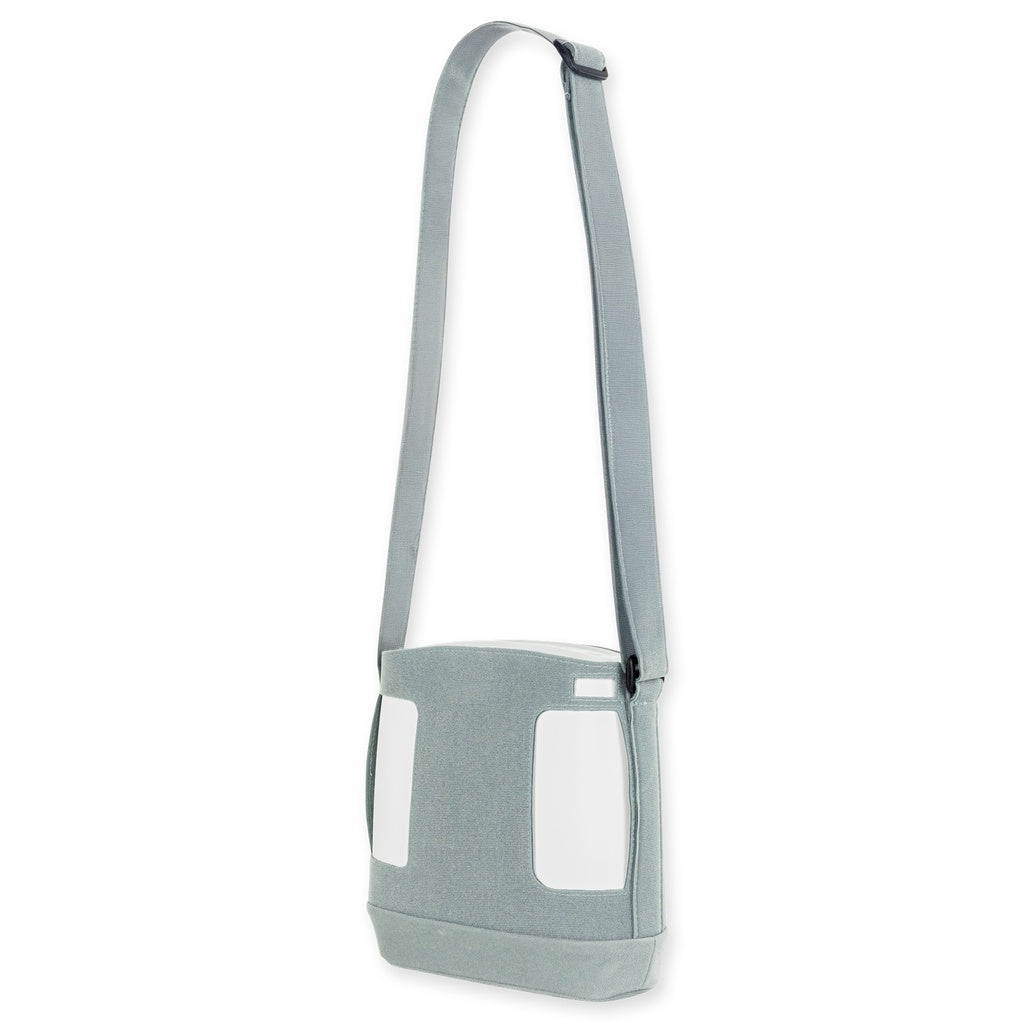

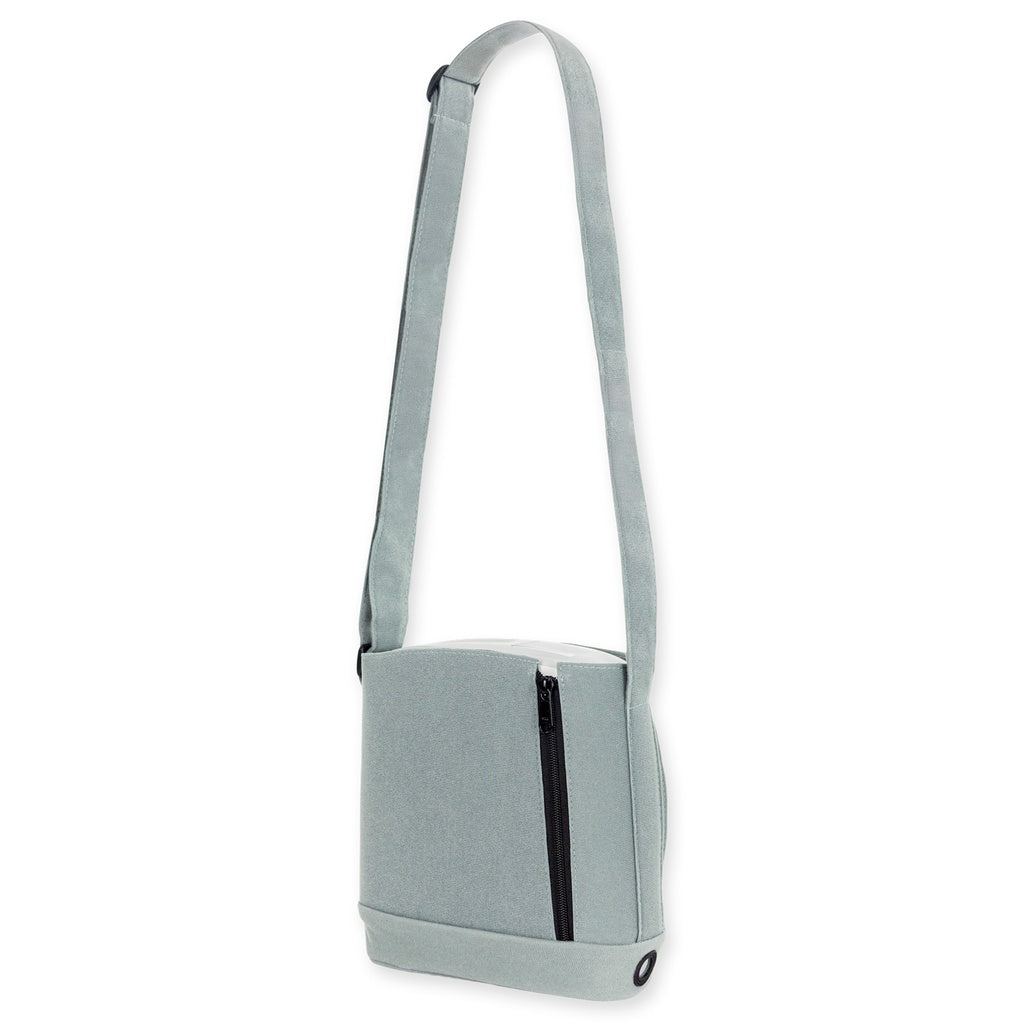

- Carrying Bag / Shoulder Strap or Backpack.
- User Manual.
- Warranty Registration Information.
Intended Use:
- Portable oxygen concentrator designed to provide prescribed supplemental oxygen therapy for individuals requiring oxygen during daily activities, travel, or home use.
Color:
- White.
Weight:
- With battery: 5.29 lb (2.4 kg).
- Without battery: 3.97 lb (1.8 kg).
Unit Dimensions:
- 8.66" x 3.15" x 8.66".
Care & Maintenance:
Always turn the unit off and disconnect power before cleaning or servicing.
General:
-
Exterior
- Clean water only, once per month.
-
Nasal Cannula & Tubing
- Clean daily using warm, soapy water.
- Rinse thoroughly and air dry.
- Only replace the cannula when reprocessing for a new patient/infection control.
-
Filters
- Clean/replace every 100 hours.
- Rinse thoroughly and allow to air dry completely before reinstalling.
- No cleaning disposable filters.
- Internal filters should only be serviced by qualified personnel.
-
Battery
- Charge regularly.
- Avoid prolonged exposure to extreme temperatures.
-
Storage
- Store in a clean, dry environment away from moisture and extreme temperatures.
HCPCS: E1392
