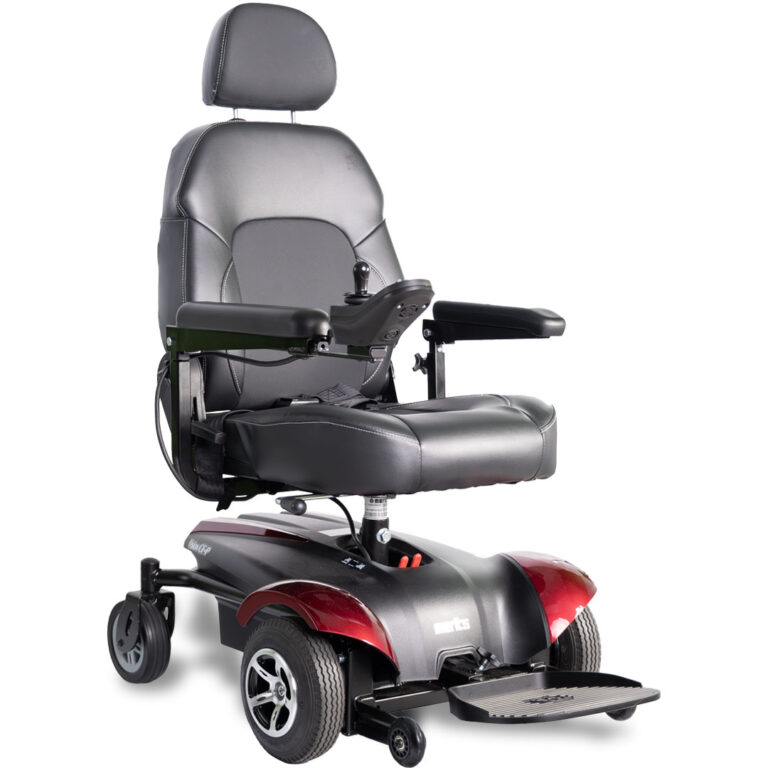

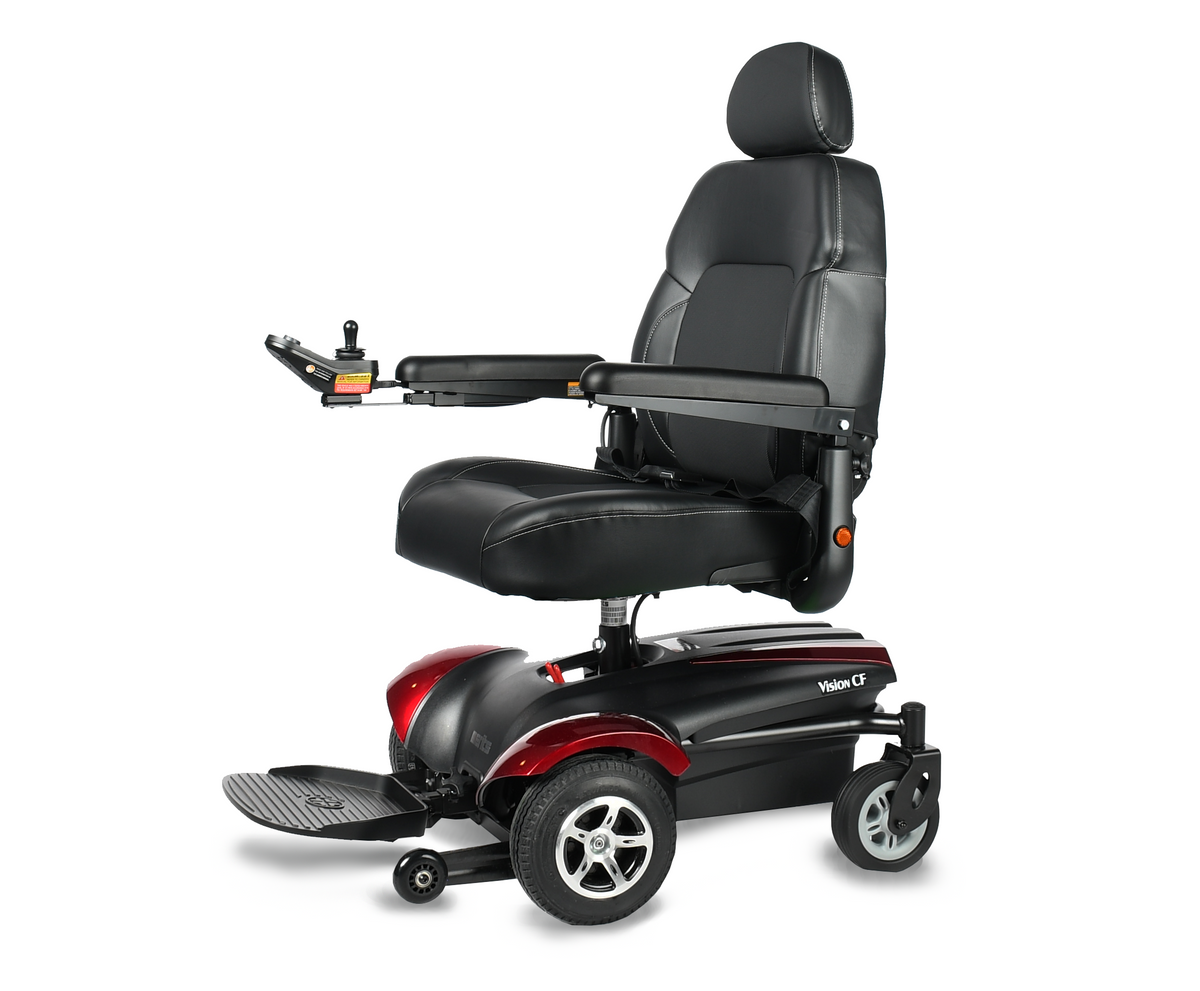

Vision CF
The Vision CF Power Chair is a fantastic all-around chair for your everyday needs. This chair has all your bases covered and is built to perform at a great value. With a max speed of 4 miles per hour and a driving range of up to 18 miles when fully charged, the Vision will keep you going
Features
- 16” width with 16”-18” depth adjustability
- 18” or 20” seat width with 18” – 20” depth adjustability
- Premium, semi-reclining ergonomic seat; up to 135°
- 9” knobby drive tires for superior traction
- Dynamic LiNX controller for convenient Bluetooth programming and diagnostics
- True U1 batteries with 34 Ah
Options
Swing-away joystick
USB charger
Oxygen tank holder
Foldable rear basket
Cane & crutch holder
Walker holder
Weather cover
Elevating legrests
Vison CF Specifications
| Product # | P322A |
| Weight Capacity | 300 lbs |
| Drivetrain | FWD |
| Seat Type | Captain or Pan |
| Seat Width | 18" |
| Seat Depth | 18" |
| Backrest Height | 20" |
| Seat-to-Floor Height | 20” - 22” |
| Elevating Seat | n/a |
| Overall Length | 33" |
| Overall Width | 25" |
| Overall Height | 42" |
| Turning Radius | 22.5" |
| Ground Clearance | 2.4" |
| Total Weight | 154 lbs |
| Wt of Heaviest Pc | 62.7 lbs |
| Max Speed | 4 mph |
| Per Charge Range | up to 18 miles |
| Motor | DC 24V, 130W |
| Controller | Dynamic LiNX 40A |
| Battery Size (2) | P326D: VR2 |
| Charger | 12V/U1 (34AH) |
| Gradient | 4A off-board |
| Front Wheels | 6 ° |
| Drive Wheels | 3” anti-tippers |
| Rear Wheels | 9” foam filled |
| Group | 6” foam filled |
| HCPCS Code | Group: 2 |
| Standard Colors | K0822/K0823 |
